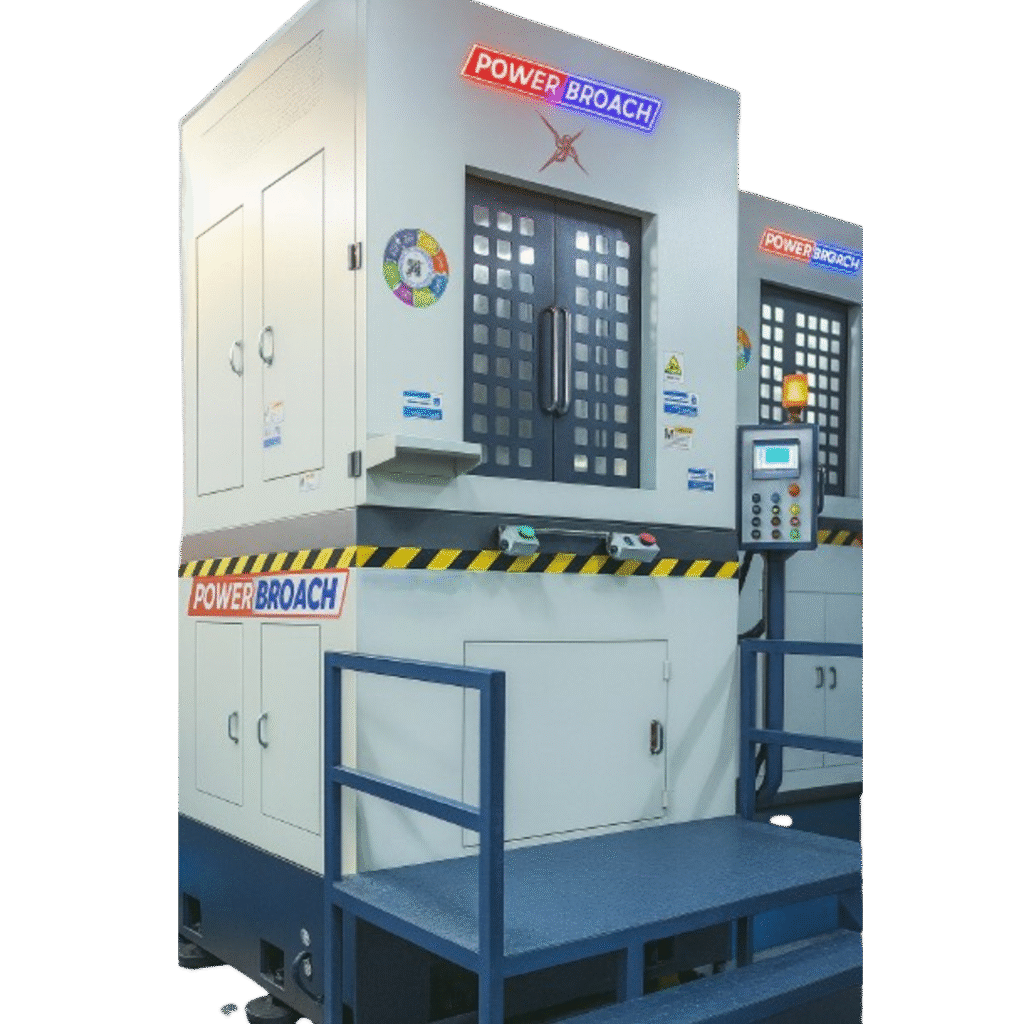

AEROSH & AEROSE
Servo Hydraulic and Electric Pull down Broaching machine
The AEROꜱʜ and ꜱᴇ servo models are engineered to meet the most demanding precision requirements in advanced industries. Specially designed for aeronautical applications, these machines deliver unmatched accuracy of less than 5 microns, ensuring flawless execution in high-precision jobs. Built on advanced servo technology, they offer superior control, stability, and performance reliability. With their robust yet finely tuned design, the Aero series stands as the benchmark for aerospace-grade precision and efficiency, tailored as per customer requirements.
- Touch Screen Human Machine Interface
- Automatic Broach Retriever cum Follower
- Hydraulic Oil Air Chiller (for Servo Hydraulic Models)
- Tool Management Chart (48 memory)
- Tool Load Monitoring
- Intelligent Machine Software PB GEN-5.21 Click to see the Features
- Programmable Coolant Function
- Dual Push Start Button For Operator Safety
- Digital speed control and programable
| Description | Capacity | AERO-6T | AERO-10T |
| Pulling Force | KN | 60 | 100 |
| Maximum Stroke/ Tool Length | mm | 600/800 | 1000/1200 |
| Cutting Speed | m/min | 1/5/01 | 1/5/01 |
| Return Speed | m/min | 8/9/01 | 8/9/01 |
| Broach Lifter Stroke | mm | 200 | 400 |
| Bolster Hole Dia | mm | 60 | 80 |
| Main Motor | Hp | 10 | 15 |
| Coolant Motor | Lpm | 63 | 63 |
